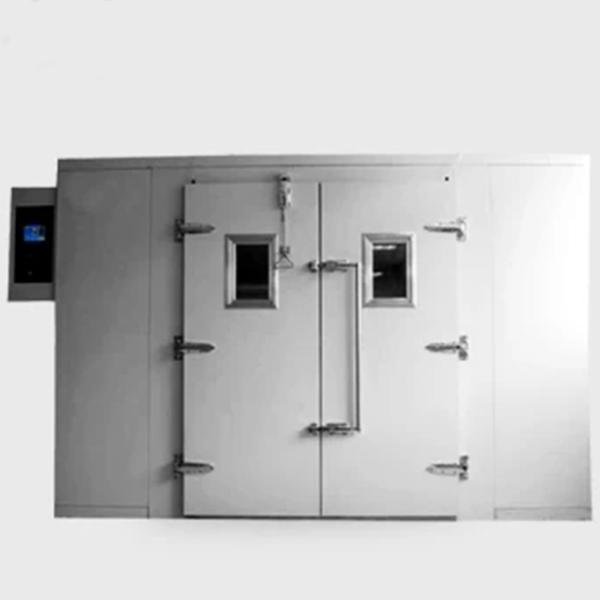

Solid Particulate Protection Test Box Protective Suit Solid Particulate Tester

Name: Solid Particulate Protection Test Box Protective Suit Solid Particulate Tester
Brand: GSKA
Price: 1 USD

Wholesale Solid Particulate Protection Test Box Protective Suit Solid Particulate Tester from china suppliers

Brand Name : GSKA

Model Number : Programmable Walk In Stability Chamber

Certification : CE SGS ROHS UL CE

Place of Origin : Dongguan China

MOQ : 1set

Price : Negotiate

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100 Set / Sets per Month

Delivery Time : 20-25days after confirmed payment or by contract stipulation

Packaging Details : Export package

Usage : Protective Clothing Solid Particles Protective Tes

Test Pressure Range : 0-1000PA (± 1% Fs)

Humidity range : 5%-98%RH

Spray pressure : 0 ~ 60kpa adjustable

Control Accuracy of Temperature : ±0.5℃

Control Accuracy of Humidity : ±3.5% R.H.

Power : AC380V

Test time : 1~9999 minutes(arbitrary setting)

Contact Now

Solid Particulate Protection Test Box Protective Suit Solid Particulate Tester

Application:
It is used to test the inward leakage rate of particulate chemical pollution in the overall protective clothing in the workplace environment.
Standard:
GB / T 29511-2013, BS EN 1SO13982
Technical Parameters:
Test environment requirements:

1. Ambient temperature (20 ± 5) OC, relative humidity <60%

2. ≥400 × 500 × 300cm use space, with good drainage and ventilation

NaCl particle aerosol generator:

Laskin nozzle Number	2x6 = 12 (two atomizing barrel distribution)
Aerosol substance	NaCl
Aerosol particle size distribution	≤1μm
Aerosol concentration	0 ~ 1 * 1012P / L
Spray pressure	0 ~ 60kpa adjustable
The occurrence amount	≥110 L / min

(2). Particle concentration detector 2 sets 4 channels
Dynamic range (0.001 ~ 200) mg / m3, accuracy ± 1%, response time ≤500 ms
(3). Horizontal foot drive test bench
Running speed (5 ± 0.5) km / h
(4). Air duct circulation and maintenance cleaning device
Control analysis system:
1. Centralized console, PC computer program control and promptly complete the entire test process
2. Automatically monitor the test data, automatically calculate the results of the experimental single internal leakage rate, total inward leakage rate, average total inward leakage rate and other experimental results, and output the experimental results in multiple ways.

Technical Parameters:

Model	GSKA-10001
Inner Dimensions(cm)	Customers designated space size and design
Temperature Range	RT+10℃~80℃(80℃ ~150℃ is optional)
Indication Resolution / Distribution Uniformity of Temperature	0.1℃ /±2.5℃;
Control Accuracy of Temperature	±0.5℃;
Temperature Rising Speed Rate	Temperature rising speed: approx. 0.1~3.0 (℃/min)
Cooling System	Refrigeration by compressor, according to customer’s requirements
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system
Optional Accessories	Slope for cart , Recorder
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC 380 V,50/60HZ ,3∮ 5 Lines

Solid Particulate Protection Test Box Protective Suit Solid Particulate Tester

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair

Do you have any question please contact with us for this Climatic Programmable Walk In Stability Chamber BS ASTM Standard,thank you
