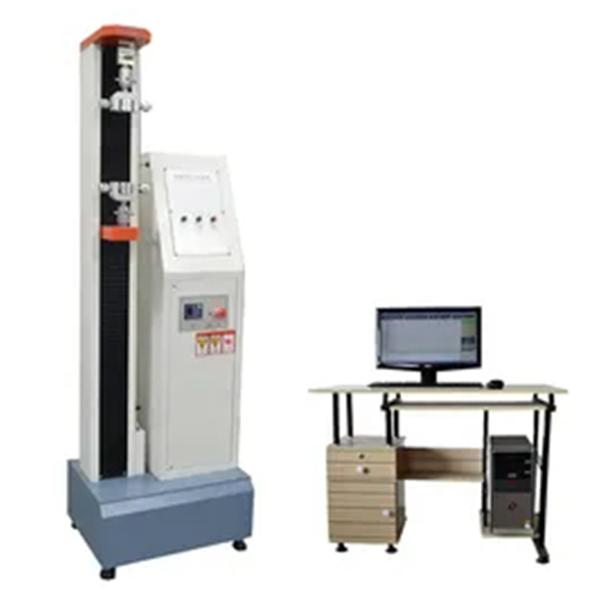

500 Kg Servo Universal Tensile Testing Machine Computer Tensile Testing Machine
Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.
2. Using a single-screen operation; do not need to switch the screen
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interfacecan be switched easily
4. The pattern of Test reports can be self designated; test data can be displayed directly in the main screen.
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics
Applicable Testing Standards:
ASTMD903, ASTM D412, GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792, CNS- 11888,JIS K6854, PSTC-7, ISO 37, ISO 1798, BS EN 1979, BS EN ISO 1798 etc.
Theory:
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.
Technical specifications:
| Model | GSKA-010 | GSKA010D |
| Test method & Control | CRE principle, microcomputer control,
LCD display, support for online | CRE principle, microcomputer & computer dual control,
dual-screen display |
| Test load | 5KN;10KN; 30KN; 50KN |
| Sampling frequency | 2500hz | 2500hz |
| Measuring force range | 1%~100% of full scale | 1%~100% of full scale |
| Force measurement accuracy | ≤±0.02%F.S | ≤±0.02%F.S |
| Stretching speed | 0.05-500mm/min | 0.05-500mm/min |
| Effective stroke of beam | 800mm Resolution: 0.01mm | 800mm Resolution: 0.01mm |
| Holder: wide strip tensile test | width 200mm; tear test: width 100mm | width 200mm; tear test: width 100mm |
| CBR burst test | φ50×100mm | φ50×100mm |
| Power supply: | AC220V±10% 50Hz 1.5KW | AC220V±10% 50Hz 1.5KW |
| Dimensions | 860×600×1800mm | 860×600×1800mm |
| Weight | 300kg | 320kg
|
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
